VI-3234u

Wireless VoIP IAD

  • 產品概述

    產品特徵:

    4 Ethernet Port | VoIP | WiFi | USB Host

    產品說明:

    VI-3234u is a Multi-DSL wireless IAD using the last BCM 63168V that not only provides both ADSL and VDSL but also supports 4 Ethernet ports. One of 4 Ethernet ports can support LAN as WAN function which becomes Access Point by Software setting. It also supports WLAN 802.11n 2.4GHz frequency band. Therefore, VI-3234u is designed for high speed applications and is suitable for triple play services.

    VI-3234u has 1*USB2.0 host port for printer server, 3G dongle, HDD, and future DLNA connectivity. It also has two FXS ports for the VoIP service. In addition, VI-3234u will follow TR-068 on LED indication and connectors, which can create a friendlier interface for user to easily identify different status of VI-3234u

    VI-3205u VI-3234u

    產品特色

    產品特色

    • Multi-DSL VoIP and Router Integrated
    • Supports both ADSL2+ and xDSL con voz (up to 17a Profile)
    • Automatically switches to ADSL2+ /xDSL con voz according to the port setting of DSLAM
    • IP QoS
    • UPnP
    • Integrated 802.11 b/g/n AP
    • WAP and 802.1x
    • Supports QoS (Quality of Service) for voice
    • Supports caller ID display and restriction
    • Supports call hold, call waiting, call forwarding, call transfer, 3-way conference
    • Supports direct number dialing
    • Supports T.38
    • Supports VPN Pass-Through
    • Supports day-time parental control
    • Supports TR-069/TR-098/TR-104/TR-111
    • Supports remote administration

    產品規格

    產品規格

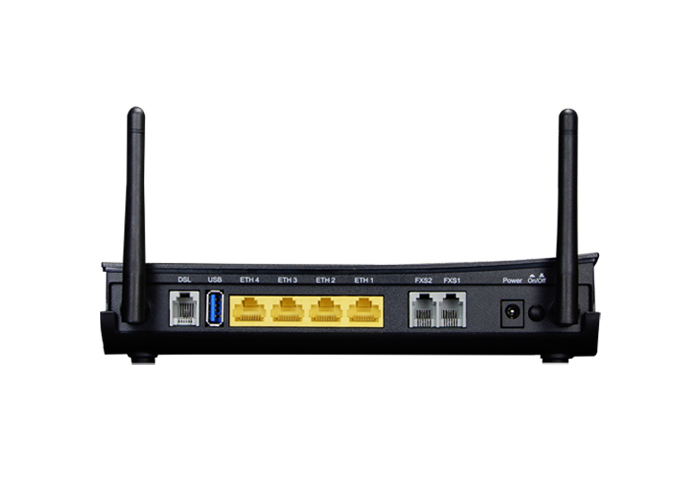

    Hardware

    • RJ-11 X1 for ADSL2+/VDSL2,
    • RJ-45 X 4 for LAN,
    • FXS X2
    • Reset Button X 1,
    • WPS & Wi-Fi On/Off button X 1
    • Wi-Fi Antennas X 2
    • Power switch X 1
    • USB Host X 1

    WAN

    • ADSL standard
      ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ANSI T1.413 Issue 2, AnnexM
    • ADSL2+:
      Downstream : 24 Mbps Upstream : 1.3 Mbps
    • VDSL2 standard
      ITU-T G.993.2 (supporting profile 8a, 8b, 8c, 8d, 12a, 12b, 17a) Support G. Vectoring
    • VDSL2
      Downstream : 100 Mbps Upstream : 60 Mbps

    LAN

    • IEEE 802.3, IEEE 802.3u
    • 10/100 BaseT auto-sense
    • Support MDI/MDX

    WLAN

    • IEEE 802.11n draft, backward compatible with 802.11g/b
    • 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
    • 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
    • Up to 300 Mbps data rate MAC address filtering, WEP, WPA, IEEE 802.1x 10, 25, 50, 100mW @ 22MHz channel bandwidth output power level can be selected according to the environment

    ATM Attributes

    • RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Route; RFC 2516 (PPPoE); RFC 1577 (IPoA)
    • Support 16 PVCs
    • AAL5
    • UBR/CBR/VBR
    • UNI 3.1/4.0
    • OAM F4/F5

    Management

    • SNMP, TR-069/TR-098/TR-104/TR-111, SNMP, Telnet, Web-based management, Configuration backup and restoration. Software upgrade via HTTP, TFTP server, or FTP server

    Bridge Functions .IEEE 802.1d

    • VLAN support
    • Spanning Tree Algorithm
    • IGMP Proxy

    Routing Functions

    • Static route, RIP, and RIPv2, NAT/PAT, DHCP Server/DHCP Relay, DNS Proxy, ARP

    Security Functions

    • PAP, CHAP, TCP/IP/Port filtering rules, Port triggering/Forwarding, Packet and MAC address filtering, access control, SSH

    QoS

    • L3 policy-based QoS, IP QoS, ToS

    Voice Functions

    • SIP: RFC 3261
    • MGCP: RFC 3435
    • Codec: G.711, G.723.1, G.726, G.729ab
    • RTP: RFC 1889
    • SDP: RFC 2327
    • Caller ID: ETSI based
    • Echo cancellation: G.168
    • Silence suppression

    Power Supply

    • External power adapter: 12VDC/ 1.5A

    Environmental Conditions

    • Operating temperature: 0 ~ 40 degrees Celsius
    • Relative humidity: 5 ~ 95% (non-condensing)

    Dimensions

    • 206mm(W) X 46mm(H) X 160mm(D)

    支援文件

    產品規格書

    DS_VI3234u_131127.pdf
