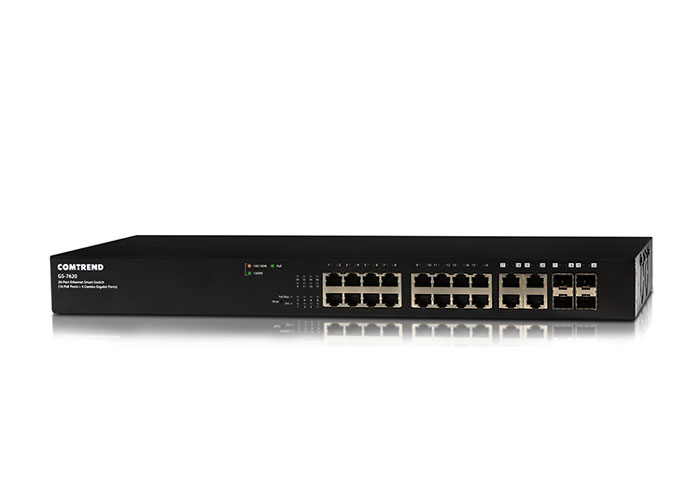

GS-7620

20-Port PoE Gigabit Ethernet Smart-Lite Switch

  • 產品概述

    產品特徵:

    20-Port PoE Gigabit Ethernet Smart-Lite Switch [16 PoE Ports + 4 Combo Gigabit Ports]

    產品說明:

    Comtrend’s GS-7600 Series of PoE Smart-Lite Gigabit Ethernet Switches offer the performance of business-class networking in a cost-effective solution. This series consists of 5, 8, 20, and 24 Gigabit Ethernet port models that feature effective management such as remote network monitoring, traffic prioritization, and VLAN features. Additionally, The GS-7600 features PoE for the added benefit of powering wireless access points, IP cameras, and VoIP phones. This series is ideal for the business looking for simple management in deployments of high bandwidth video and network services.

    Key Benefits:

    Simplified Troubleshooting with Port-Mirroring
    Sends a copy of all network packets from any selected port(s) to another port so data can be easily analyzed.

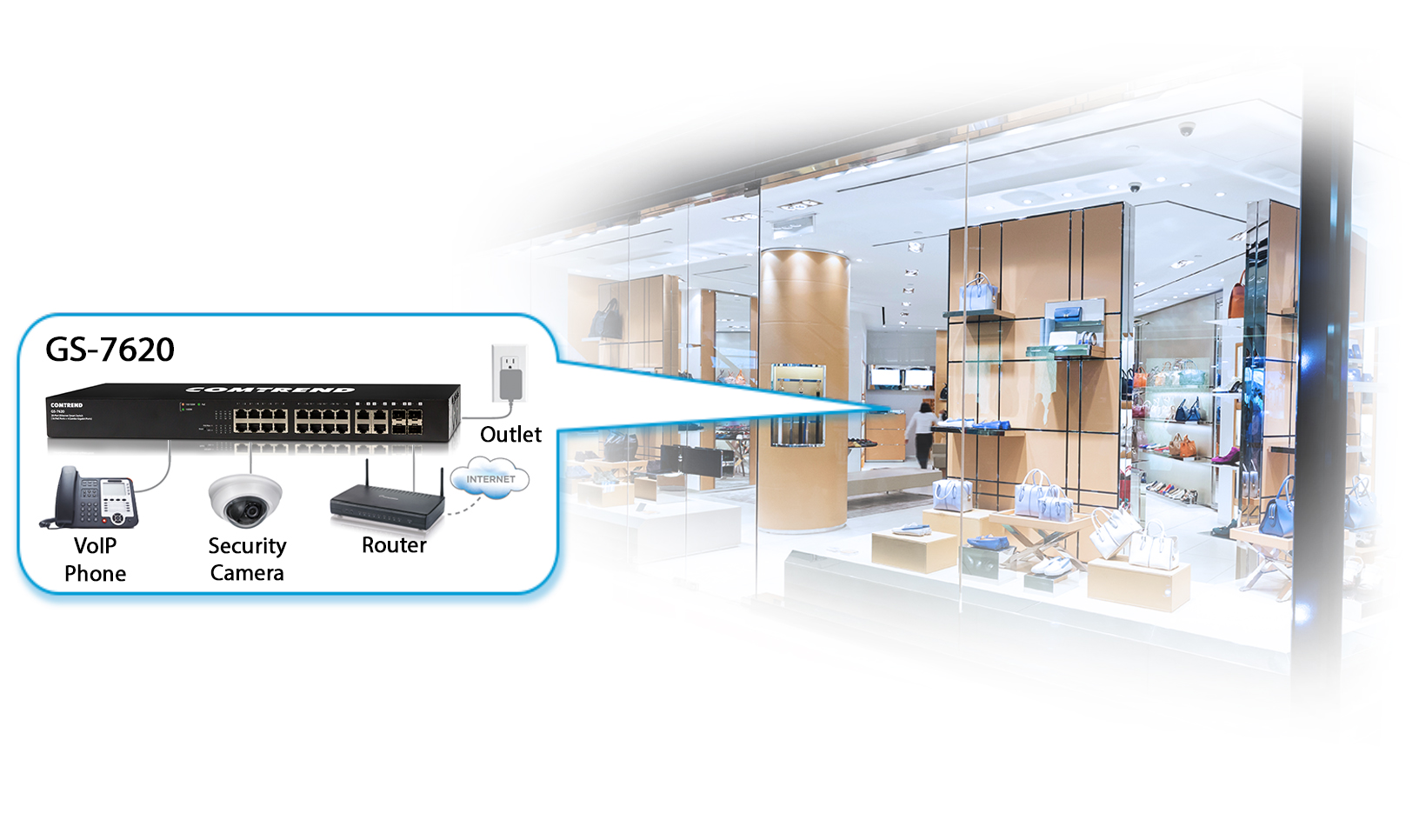

    Connect Multiple High- Powered Devices
    Supplies up to 30 watts of power per port. The 130 watts total power budget ensures you always have enough power.

    Monitor your Network Remotely
    Remotely disable and enable individual ports to reboot your PoE devices.

    Port Level PoE Configuration
    Assign power budget prioritization or a fixed power budget on specific ports to manage to PoE power distribution

    GS-7620 GS-7620

    產品特色

    產品特色

    • 4 Combo Gigabit Ethernet Ports
    • 16 Gigabit Ethernet PoE LAN Ports
    • PoE Standard: IEEE 802.3af/at
    • PoE Capable Ports: 1-16
    • PoE Output Power Capacity: Maximum Output: 30 watts per port, 330 watts total power budget
    • Switching Capability: 16Gbps
    • IGMP Snooping v1/v2/v3
    • 802.1Q VLAN for Traffic Segregation
    • Port-Based VLAN
    • Voice VLAN
    • 802.1p QoS
    • Web-Based GUI
    • IEEE 802.3az Compliant
    • Dimensions: 17.36 x 7.71 x 1.73in (WxDxH)

    產品規格

    產品規格

    Hardware:

    • 16 x PoE 10/100/1000Mbps Ports
    • 4 x Combo SFP 10/100/1000Mbps Ports

    HW Feature:

    • IEEE802.3 10BASE-T
    • IEEE802.3u 100BASE-TX
    • IEEE802.3ab 1000BASE-T
    • IEEE802.3az EEE
    • IEEE802.3at
    • IEEE802.3af
    • MAC Address Table: 8K
    • Packet Buffer Size: 512KB, Jumbo Frame: 9K
    • PoE Power Budget: 330W

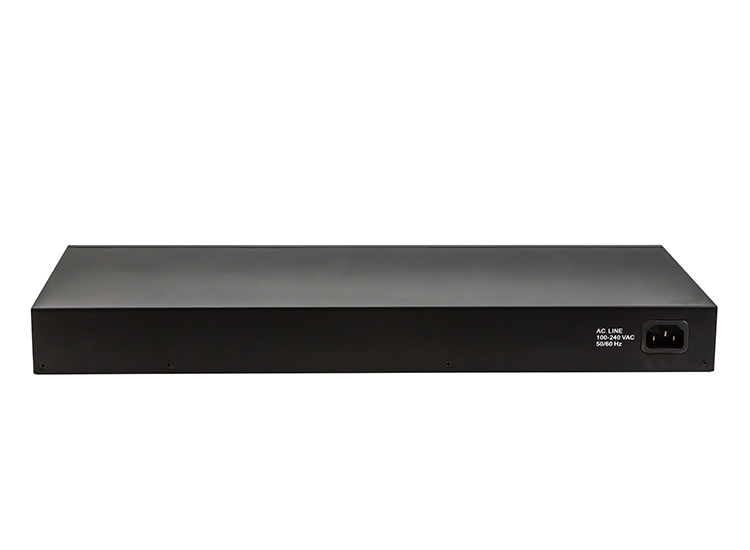

    Power Input:

    • AC-to-DC Internal Power Adapter
    • Input: 100-240V AC
    • Output: 53VDC/2.75A

    Dimension:

    • 17.36 x 7.71 x 1.73in (WxDxH)
    • 441 x 196 x 44mm (WxDxH)

    Temperature:

    • Operating: 32~104°F (0~40°C); Storage: -40~158°F (-40~70°C)

    Humidity:

    • Operating: 10% ~ 90% RH (Non-condensing)
    • Storage: 5% ~ 90% RH (Non-condensing)

    HW Reset Button:

    • Supports Reset to Default Function

    Software Features:

    Port:

    • Auto Negotiation of Speed and Duplex Modes
    • Jumbo Frame Support
    • Cable Diagnostics

    Mirror:

    • Port Mirroring Both on Ingress and Egress Traffic

    VLAN:

    • 802.1Q VLAN(IEEE 802.1Q Standard)
    • Port-Based VLAN

    LACP:

    • Link Agression
    • IEEE802.3ad

    Multicast:

    • Blocking of Unknown Multicast Traffic

    QoS:

    • IEEE802.1p-Based QoS
    • Port-Based QoS
    • Scheduling Method (WFQ, WRR, WRR+WFQ)
    • Rate Limitation

    IGMP Snooping:

    • Supports IGMPv1 Snooping—RFC 1122, RFC 4541
    • Supports IGMPv2 Snooping—RFC 2236, RFC 4541
    • Supports IGMPv3 Snooping (Partial)—RFC 3376
    • Multicast Groups

    Security:

    • Broadcast Storm Control
    • Loop Detection/ Prevention

    Management:

    • User Interface (Web-based Management)
    • User Account (System Password Protection)
    • Firmware Upgrade by Web User Interface
    • Configuration Upload/Download by Web User Interface

    PoE

    • PoE Power Output On/Off Management

    EMI/Safety:

    Safety

    • CE, LVD, FCC
