GRG-4285
XGSPON Bridge/Gateway
XGS-PON | 2.5Gigabit Ethernet | TR-069
-
Overview
Description:

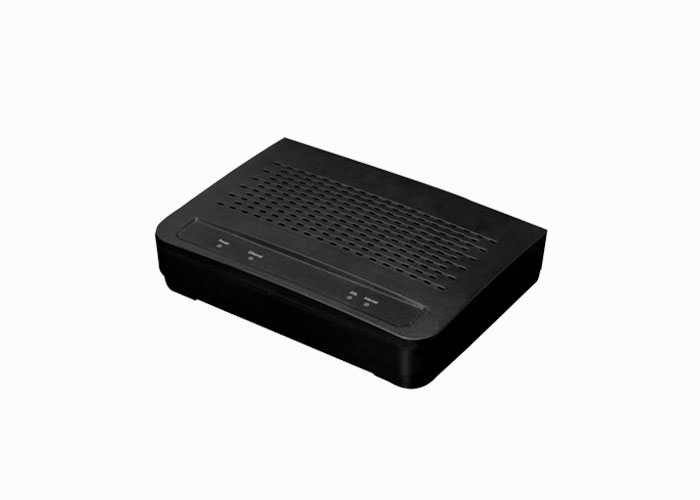

Comtrend’s GRG-4285 is designed as an XGS-PON Bridge/Gateway with the capability to provide a strong and stable internet connection through XGS-PON fiber with one 2.5 Gigabit Ethernet port as LAN to connect with the wireless unit to provide seamless family internet acces sservices.
The indoor models of Comtrend’s xPON product line provide a lower cost and small package which contains many features including QoS, Data Bridge and multicast video support.
Compliant with standard OMCI definition, GRG-4285 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Features
Key Features
- XGS-PON: Symmetric 10G/10G UL/DL, provides high speed fiber to the home services.
- 2.5 Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
- Routing Function: Routing software function integrated.
- Remote Management: TR-069 standard data model for ISP remote control.
Specifications
Specifications
HARDWARE SPECIFICATIONS
Flash
NAND Flash: 128M ByteRAM
DDR3: 256M ByteInterfaces
XGS-PON (SC/APC) x 1
2.5 Gigabit Ethernet LAN x 1LED Indicators
Power, Internet, PON, 2.5G ETHButtons
Reset buttonPower Input
12VDC/1.5AREMOTE MANAGEMENT
Protocol
TR-069, HTTP, HTTPS, TELNET, SSHCETIFICATIONS
CEPACKAGE CONTENTS
XGS-PON Bridge/Gateway (GRG-4285) x 1
Power adapter 12VDC/1.5A, 100-240VAC, 50/60Hz, 1.5m x 1
RJ-45 Giga Ethernet cable (8P8C, 1.5m) x 1ENVIRONMENT
Temperature
Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -40°C ~ 70°C (-40°F ~158°F)Humidity (Non-condensing)
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 90% RH, non-condensingResources
