GRG-4283
XGSPON VoIP Gateway
XGS-PON | 2.5Gigabit Ethernet | VoIP | TR-069
-
Overview
Description:

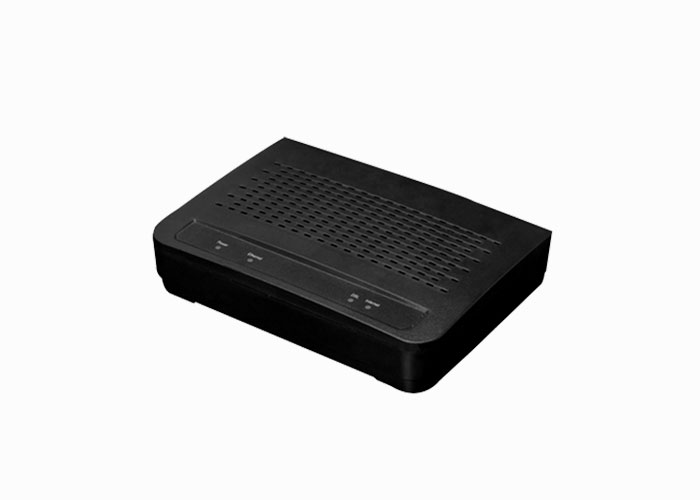

Comtrend’s GRG-4283 is designed as a standards based XGS-PON VoIP Gateway with the capability to provide a strong and stable internet connection through XGS-PON fiber with one 2.5 Gigabit Ethernet port and one Gigabit Ethernet port as LAN.
Apart from internet connections, GRG-4283 additionally offers 2 VoIP ports to fulfill the majority of the family phone call demands.
Compliant with standard OMCI definition, GRG-4283 is manageable from the remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
Features
Key Features
- XGS-PON: Symmetric 10G/10G UL/DL, provides high speed fiber to the home services
- 2.5 Gigabit Ethernet LAN port: Capable of providing high-speed connectivity.
- Gigabit Ethernet LAN port: Additional internet connectivity provided.
- Voice Over IP port: Make phone calls via GRG-4283.
- Remote Management: TR-069 standard data model for ISP remote control.
Specifications
Specifications
HARDWARE SPECIFICATIONS
Flash
NAND Flash: 128M ByteRAM
DDR3: 512M ByteInterfaces
XGS-PON (SC/APC) x 1
2.5 Gigabit Ethernet LAN x 1, Gigabit Ethernet LAN x 1
VoIP (FXS) x 2LED Indicators
Power, Internet, PON, 2.5GE, ETH1, ETH2, Phone 1, Phone 2Buttons
Reset buttonPower Input
12DVC/1.0AREMOTE MANAGEMENT
Protocol
TR-069, HTTP, HTTPS, TELNET, SSHCETIFICATIONS
CEPACKAGE CONTENTS
XGS-PON VoIP Gateway (GRG-4283) x 1
Power adapter 12DVC/1.5A, 100-240ACV, 50/60Hz, 1.5m x 1
RJ-45 Giga Ethernet cable (8P8C, 1.5m) x 1ENVIRONMENT
Temperature
Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -40°C ~ 70°C (-40°F ~158°F)Humidity (Non-condensing)
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 90% RH, non-condensingResources
