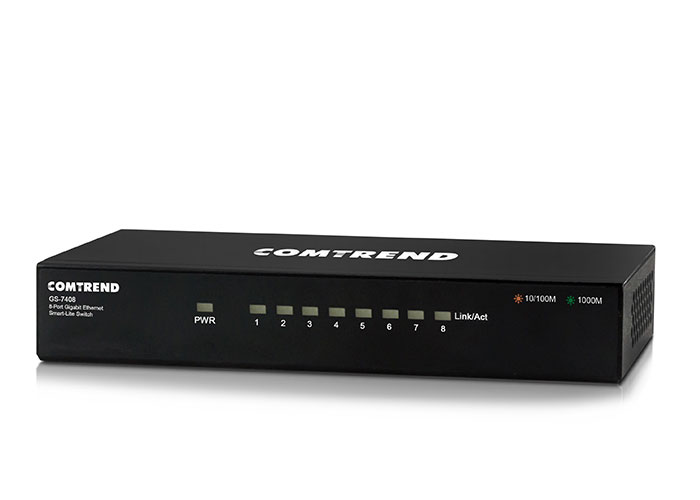

GS-7408

8-Port Gigabit Ethernet Smart-Lite Switch

  • 產品概述

    產品特徵:

    8-Port Gigabit Ethernet Smart-Lite Switch [8 Gigabit Ports]

    產品說明:

    Comtrend’s GS-7408, a Smart-Lite Gigabit Ethernet Switch, offers the performance of business-class networking in a cost-effective solution. The GS-7408 features effective management such as remote network monitoring, traffic prioritization, and VLAN features. It is ideal for the business looking for simple management in deployments of high bandwidth video and network services.

    KEY BENEFITS

    Simplified Troubleshooting with Port-Mirroring:
    Sends a copy of all network packets from any selected port(s) to another port so data can be easily analyzed.

    IGMP Snooping v1/v2/v3:
    Reduces the Multicast traffic passing through the switch, enhancing your streaming video experience and optimizing the bandwidth in network throughput.

    VLAN Assignment:
    Secures network access to authorized devices on a per port basis.

    QoS/Priority Mapping:
    Reserves bandwidth on a per port basis based on user-defined priorities such as video, voice, etc.

    GS-7408 GS-7408

    產品特色

    產品特色

    • 8 Gigabit Ethernet Ports
    • IGMP Snooping v1/v2/v3
    • Port-Based Bandwidth Control
    • 1Q VLAN for Traffic Segregation
    • Port-Based VLAN
    • Voice VLAN
    • Video VLAN
    • QoS
    • Web-Based GUI
    • IEEE 802.3az Compliant
    • Dimensions: 6.08 x 3.35 x 1.02in (WxDxH)

    產品規格

    產品規格

    Hardware

    • 10/100/1000 Ports: 8

    HW Feature

    • IEEE802.3 10BASE-T
    • IEEE802.3u 100BASE-TX
    • IEEE802.3ab 1000BASE-T
    • IEEE802.3az
    • MAC Address Table: 4K
    • Packet Buffer Size: 192KB
    • Jumbo Frame: 9K

    Power Input

    • AC-to-DC External Power Adapter
    • Input: 100-240V AC
    • Output: 5VDC/1A

    Dimensions

    • 6.08 x 3.35 x 1.02in (WxDxH)
    • 154.5 x 85 x 26mm (WxDxH)

    Temperature

    • Operating: 32~104°F (0~40°C)
    • Storage: -40~158°F (-40~70°C)

    Humidity

    • Operating: 10% ~ 90% RH (non-condensing)
    • Storage: 5% ~ 90% RH (non-condensing)

    Fan Design

    • Fan-less

    HW Reset Button

    • Supports Reset to Default Function

    Software Features

    Port

    • Auto Negotiation of Speed and Duplex Modes
    • Jumbo Frame Support
    • Statistics

    Mirror

    • Port Mirroring Both on Ingress and Egress Traffic
    • Many to One

    VLAN

    • 802.1Q VLAN (IEEE 802.1Q Standard)
    • Port-Based VLAN
    • VLAN Groups: 5/8/200

    LACP

    • Link Aggression
    • IEEE802.3ad
    • Link Groups: 1/1/10
    • Load Balance Algorithm Select: MAC SA & DA

    Multicast

    • Blocking of Unknown Multicast Traffic

    QoS

    • IEEE802.1p-based QoS
    • Port-Based QoS
    • Scheduling Method (WFQ/Strict Priority)
    • Rate Limitation
    • Priority Queues

    IGMP Snooping

    • Supports IGMPv1 Snooping—RFC 1122, RDC 4541
    • Supports IGMPv2 Snooping—RDC 2236, RDC 4541
    • Supports IGMPv3 Snooping (Partial)—RDC 3376
    • Multicast Groups

    Security

    • Broadcast Loop Detection / Prevention

    Management

    • User Interface (Web-based Management), User Account (System Password Protection)
    • 韌體 Upgrade by Web User Interface
    • Configuration Upload/Download by Web User Interface

    EMI/Safety

    Safety

    • CE, LVD

    EMC

    • FCC Part15, CE (Class B)
